Description

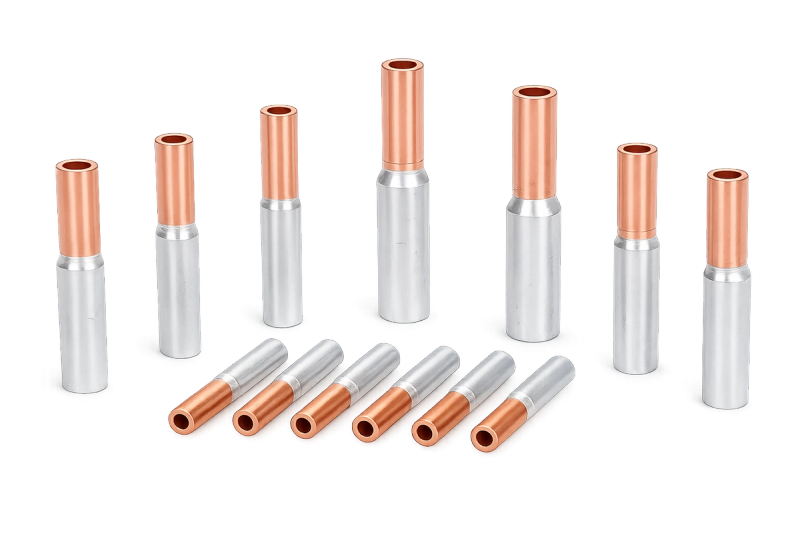

Product Report – GTY Bimetallic Cable Lugs (Copper–Aluminum) 1. Product Overview These components are bimetallic cable lugs designed for connecting aluminum conductors to copper busbars or terminals. They are manufactured using a friction-welded copper tube (top part) and an aluminum tube (bottom part) to ensure reliable conductivity and prevent galvanic corrosion. 2. Material Structure - Copper (Cu) upper barrel – provides high conductivity and stable connection to copper terminals. - Aluminum (Al) lower barrel – suitable for aluminum cables. - The junction is solid-state welded. 3. Available Sizes GTY-10 (10 mm²) GTY-16 (16 mm²) GTY-25 (25 mm²) GTY-35 (35 mm²) GTY-50 (50 mm²) GTY-70 (70 mm²) GTY-95 (95 mm²) GTY-120 (120 mm²) 4. Key Features - High conductivity - Strong copper–aluminum bonding - Corrosion-resistant - Compatible with hydraulic crimp tools - Smooth inner wall 5. Applications Power distribution systems, industrial wiring, switchgear, transformers, renewable energy systems.
